Professional Additive Manufacturing Services
located in Doncaster, UK

Do you require metal additive manufacturing services? If so get in touch with the
experts at Laser Additive Solutions Ltd today.

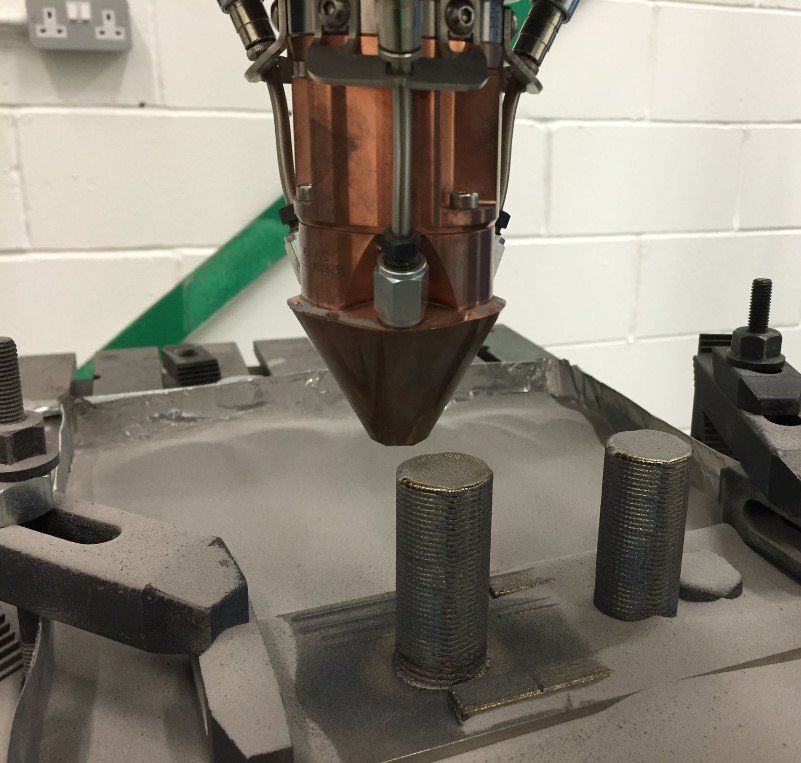

Additive Manufacturing: Building Engineering Components from Metal Powder

By using hundreds or maybe thousands of layers of welded material, large free-form structures can be built. Each layer is in the region of 0.4mm thick and a CAD/CAM system is used to create the desired toolpaths.
Complexity of parts can be greater than what is shown in the images below, with overhangs in the region of 25 degrees possible, but it is a 'additive' process and so the upper layers need to be able to 'sit' on layers below.

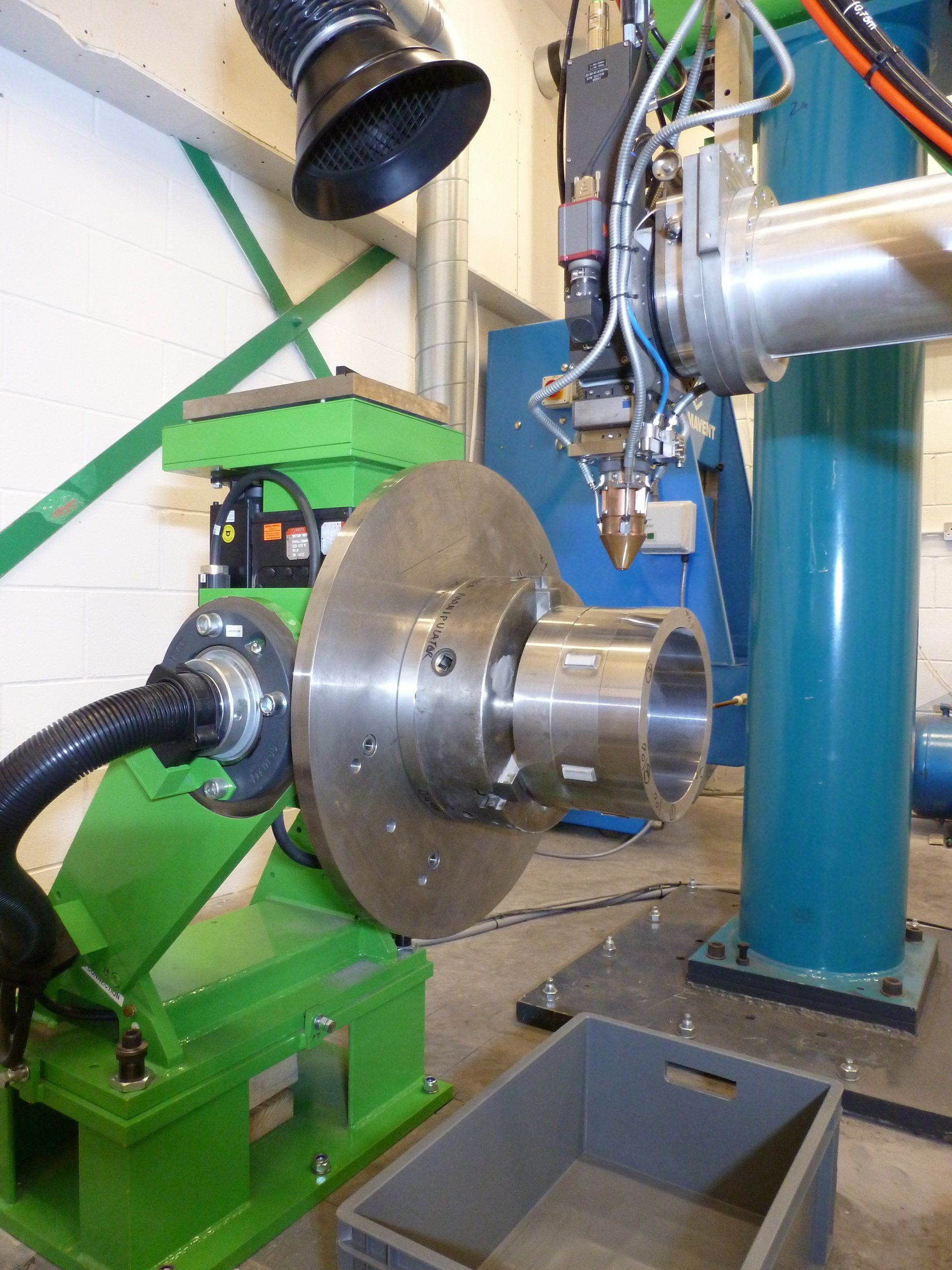

direct laser deposition

Additive Manufacturing: Materials

Here at LAS we have experience of working with the following metal based powders:
  • Titanium 6-4
  • Inconel Alloys (IN718 and IN625)
  • Aluminium Alloys
  • Engineering Steels (EN24, EN25, 4140, and 4340)
  • Stainless Steels (316, Super Duplex, 420, and 17-4PH)
  • Stellites (6, and 21)
  • Hard-Phase Composites (WC/Ni, and NCr-CrC)
  • Tool and HSS Alloys (D2, M2, H13, Vanadis)
LAS also has significant experience of working with the following base materials:
  • Cast Iron
  • Mild Steel

Additive Manufacturing: Quality and Testing

LAS work according to the quality standards established within our ISO 9001: 2015 accreditation. LAS have fully calibrated measuring equipment to monitor the following Key Process Variables:
  • Laser Power
  • Laser Beam Profile (spot size)
  • Powder Feedrate and gas flows (argon or helium)
  • Machine Processing Speed
  • Atmospheric Oxygen Content (ppm) - when using atmospheric welding chamber

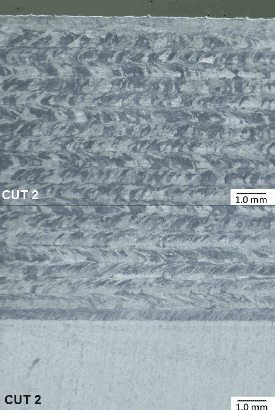

LAS work closely with Doncaster Analytical Services Ltd who carry out independent metallurgical investigation including microscopy analysis, hardness testing, and mechanical property testing.
aerial view of the areas

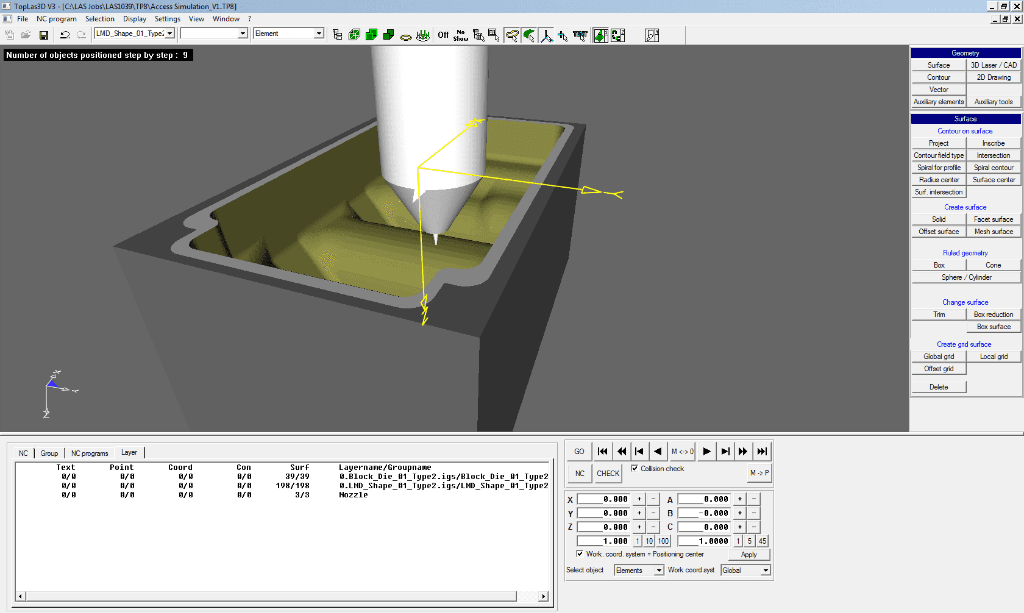

Additive Manufacturing: Toolpath Programming

LAS use 5-axis CAM programming software for all laser processing activities. Developed toolpaths are safely stored for traceability reasons. Many Additive Manufacturing projects are based on customer supplied CAD models - LAS then go about producing metallic near-net shapes representing the supplied CAD models.
Tilt Pad

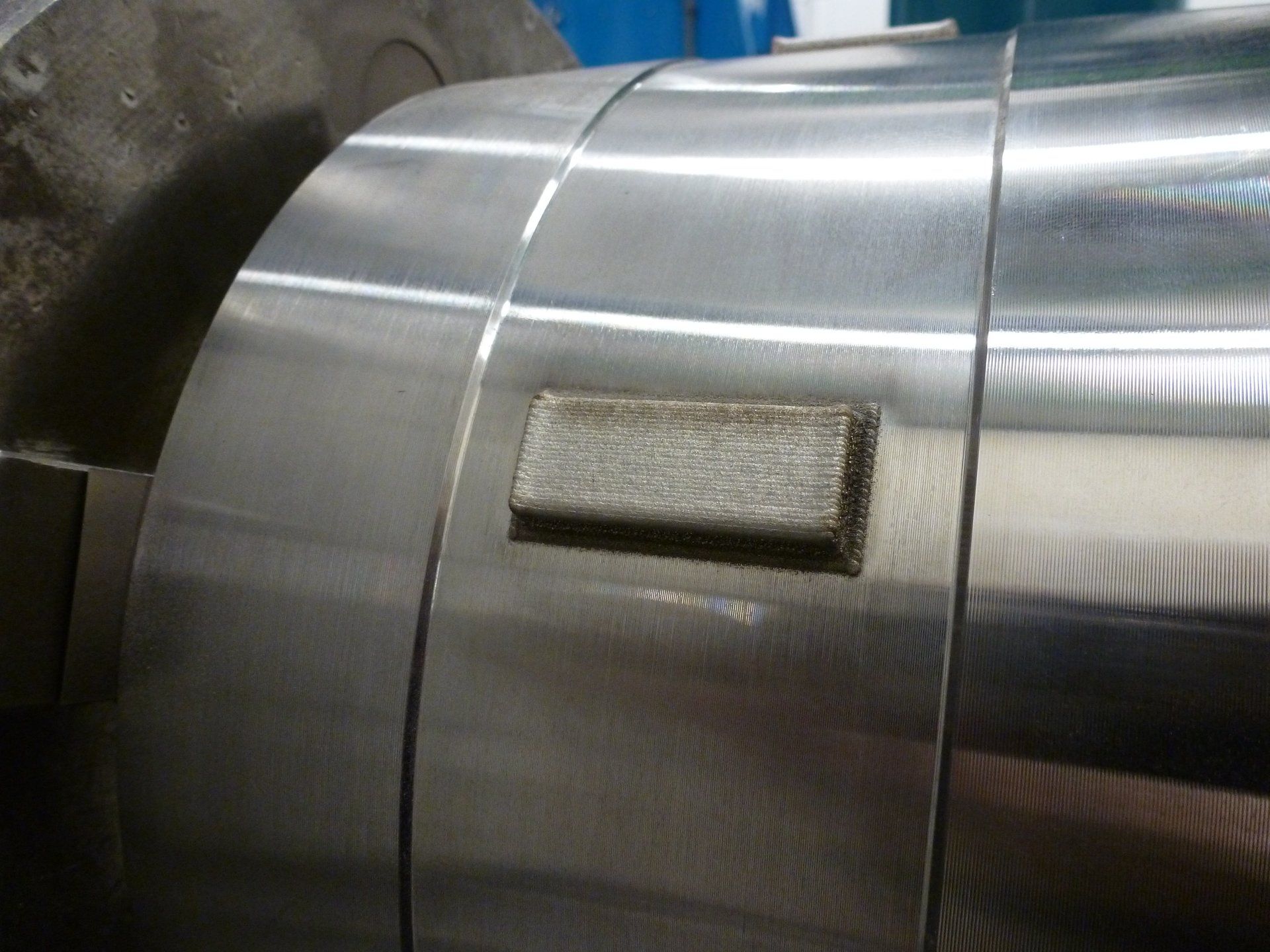

Additive Hybrid Manufacture

  • Allows reduction of base component raw material - deposit near-net shape features rather than starting with a significantly over-sized billet
  • Very precise addition of near-net shape material just where it is required
  • Use higher performing LMD material compared to base component e.g. Stellite for high wear resistance applications
  • Can deposit onto a variety of shapes - process is CAD/CAM driven
  • All process variables are monitored and controlled - results in a highly repeatable manufacturing process
Laser deposited tilt pad

Selective Laser Melting


We work closely with a company called Agemaspark Ltd who offer a 3D printing service where internal channels are more than viable, see below the equipment they possess.
Their state-of-the-art metal additive manufacturing (Direct Metal Laser Sintering [DMLS]) machine offers high performance, reliability and repeatability all allow them to produce consistent parts with the same mechanical properties over and over again. Together with their fully equipped post-processing facility we can enable the production of turnkey, ready to be used, components.

EOS M290 – Metal Sintering Machine
Effective building volume (including building platform): 250mm x 250mm x 325mm
Laser Type: Yb-fibre laser, 400 W
Build speed (material-dependent): 2 – 8 mm3/s
Layer Thickness: 20 – 100 µm

For all SLM needs please contact: paul@agemaspark.co.uk

If you require metal Additive Manufacturing services, call Laser Additive Solutions Ltd on
01302 868 988
